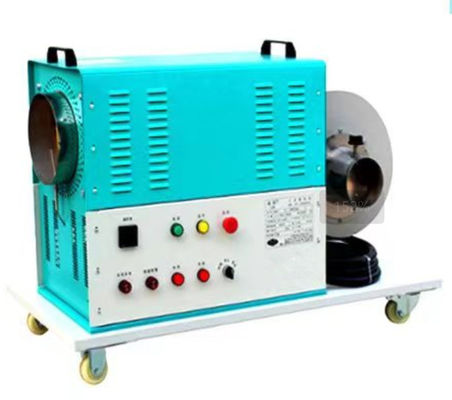

Hot Air Blower Industrial Air Heater With High Pressure Blower For Drying
Hot Air Blowers are built with robust materials to withstand the rigors of industrial environments, ensuring longevity and reliability. Includes safety mechanisms such as thermal overload protection and airflow sensors to prevent overheating and ensure safe operation. Available in various configurations, including portable units for flexibility and stationary models for fixed installations.
| Model | HAG-P/R3A | HAG-P/R5-7.5A | HAG-P/R10-15A | ||||||
| Specifications | P1220-3C-018Y | P3380-7.5C-025Y | P3380-10C-055Y | ||||||
| Power system | 2/220V±10% | 3/380V±10% | 3/380V±10% | ||||||
| Heater power | 3KW | 5KW | 5KW | 6KW | 7.5KW | 10KW | 12.5KW | 15KW | |
| Outlet temperature | Normal temperature ~ 350 ° C | ||||||||
| Temperature control method | PID control (SSR drive) | ||||||||
| Air outlet caliber | 063mm (Can be customized) | 063mm (Can be customized) | 076mm (Can be customized) | ||||||
| Blower | Power | 120/180W | 250/370W | 550/750W | |||||
| Maximum air volume (50Hz) | 305/405m3/h | 504/660m3h | 860/1200m3/h | ||||||
| Maximum wind pressure (50Hz) | 412/450Pa | 850/860Pa | 1020/1210Pa | ||||||
| Inlet diameter | 89mm (Can be customized) | 102mm (Can be customized) | 133mm (Can be customized) | ||||||
| Air volume adjustment method | Manual adjustment of conventional air inlet (adjustable by installing inverter) | ||||||||
| Air inlet temperature range | Normal temperature (circulating type is normal temperature ~ 230 ° C) | ||||||||
| Noise (at a maximum air volume of 50Hz) | 70db | 70db | 76db | ||||||
| Total cable | 3 core x4m2x3m | 5 core x4m2x3m | 5 core x6m2><3m | ||||||
| Installation and fixing method | Machine angle (can be equipped with wheels or L angle mounting bar) | Machine angle (can be equipped with wheels or L angle mounting bar) | Wheel (can be equipped with mounting holes or L-corner mounting bars) | ||||||
| Weight | 20kg | 25/32kg | 45/50kg | ||||||
| Work environment | Ambient temperature: 0 ~ 40 ° C Relative humidity: RH80% or less (no frost allowed) | ||||||||
