Precision Annealing Heat Treatment Of Optical Glass Products In Glass Oven

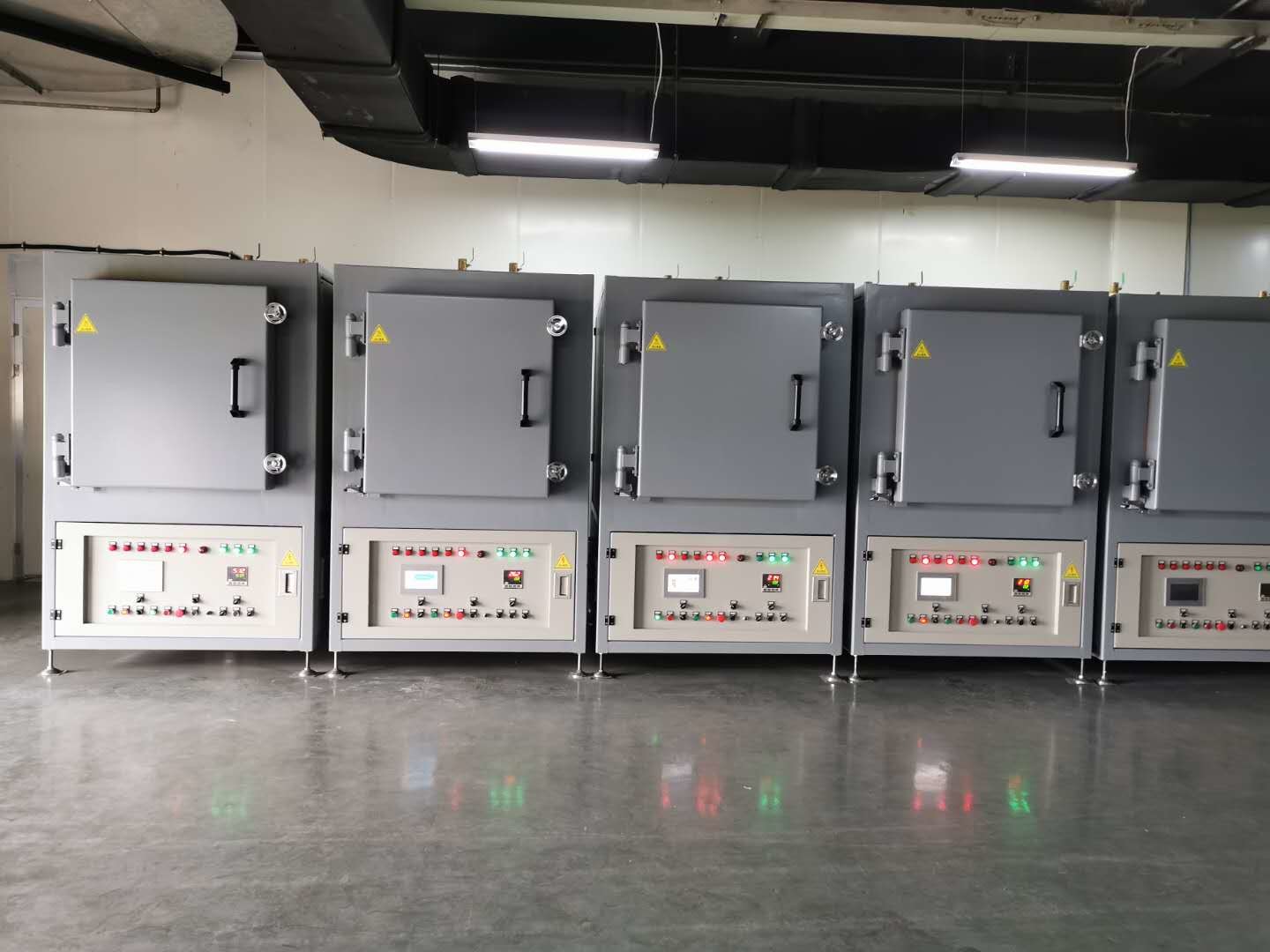

Box-type optical glass precision annealing furnace.
With the development of laser equipment in China, the application technology of optical glass is becoming more and more mature, the annealing furnace is the necessary equipment used in the production process of optical glass.
This furnace is mainly used for precision annealing of quartz glass products such as quartz glassware, optical quartz glass, and quartz glass tubes. It is controlled by 8-segment PID intelligent temperature control instrument and imported SCR thyristor module. Electric heating alloy wire or silicon carbon rod heating, automatic constant temperature, programmed heating process, linear proportional output. (The furnace size can be customized according to user's products)
| The main technical parameters | |
| Chamber effective volume | 0.1-3m³ |
| Power | 15-240Kw/380V/220V |
| Temperature uniformity | ≤ ± 3 ℃ (9-point test) |
| Maximum use temperature | 500℃ 700℃ 850℃ 1000℃ |
| Heating method | Multi-sided heating |
| Electric heating element | Electrothermal alloy wire |
| Chamber atmosphere | Hot air circulation |
| Control method | PID intelligent program temperature control, touch screen section, 485 communication and other superior performance |

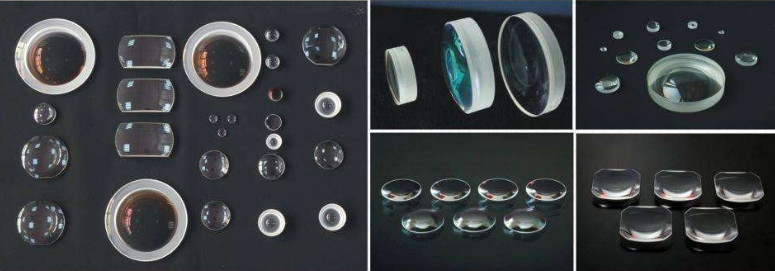

Non-standard customized equipment, mainly used for precision annealing and heat treatment of optical glass products.
In order to eliminate the internal stress of the glass to a great extent and improve the optical uniformity, a strict annealing system must be formulated to carry out precision annealing.
This furnace is mainly used for precision annealing of quartz glass products such as quartz glassware, optical quartz glass, and quartz glass tubes. It is controlled by 8-segment PID intelligent temperature control instrument and imported SCR thyristor module. All-fiber integrated furnace, high temperature Electric heating alloy wire or silicon carbon rod heating, the maximum use temperature is 1000 ℃, temperature control accuracy ± 1 ℃, automatic constant temperature, heating process programming, linear proportional output. (The furnace size can be customized according to user's products)
Please contact us for details, we will tailor-made for you!
1, Are you trading or manufacturer ?

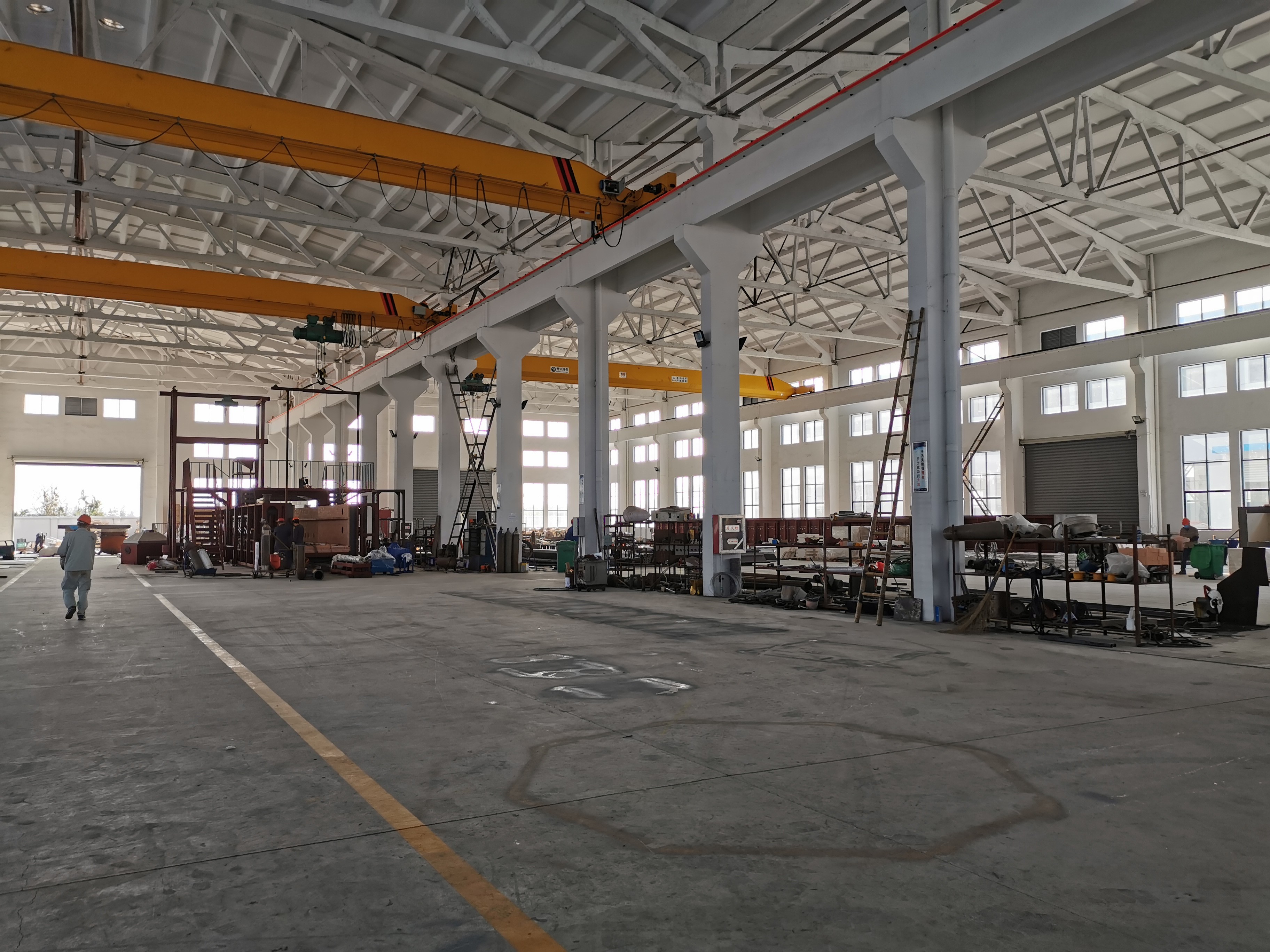

We are a company, and we have our own factory
2,How long is your delivery time?
Negotiable
Delivery period: 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement
